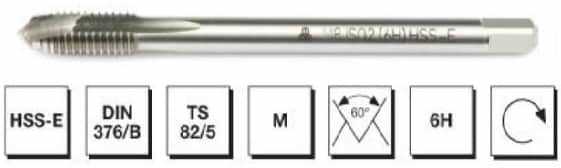

HSS - E DIN 376/B Metrik Normal Vidalı Eğik Ağız Bilemeli Makina Kılavuzu

Fiyat

0,00 TL + KDV

KDV Dahil

0,00 TL

{"vat":18,"m_o_p":0,"variant_ids":{"24644_0":"27771","24645_0":"27772","24646_0":"27773","24647_0":"27774","24648_0":"27775","24649_0":"27776","24650_0":"27777","24651_0":"27778","24652_0":"27779","24653_0":"27780","24654_0":"27781","24655_0":"27782","24656_0":"27783","24657_0":"27784","24658_0":"27785"},"variant_prices":{"24644_0":"0","24645_0":"0","24646_0":"0","24647_0":"0","24648_0":"0","24649_0":"0","24650_0":"0","24651_0":"0","24652_0":"0","24653_0":"0","24654_0":"0","24655_0":"0","24656_0":"0","24657_0":"0","24658_0":"0"},"variant_price_raws":{"24644_0":0,"24645_0":0,"24646_0":0,"24647_0":0,"24648_0":0,"24649_0":0,"24650_0":0,"24651_0":0,"24652_0":0,"24653_0":0,"24654_0":0,"24655_0":0,"24656_0":0,"24657_0":0,"24658_0":0},"buying_prices":{"24644_0":"0","24645_0":"0","24646_0":"0","24647_0":"0","24648_0":"0","24649_0":"0","24650_0":"0","24651_0":"0","24652_0":"0","24653_0":"0","24654_0":"0","24655_0":"0","24656_0":"0","24657_0":"0","24658_0":"0"},"not_discounted_prices":{"24644_0":0,"24645_0":0,"24646_0":0,"24647_0":0,"24648_0":0,"24649_0":0,"24650_0":0,"24651_0":0,"24652_0":0,"24653_0":0,"24654_0":0,"24655_0":0,"24656_0":0,"24657_0":0,"24658_0":0},"variant_supplier_codes":{"24644_0":null,"24645_0":null,"24646_0":null,"24647_0":null,"24648_0":null,"24649_0":null,"24650_0":null,"24651_0":null,"24652_0":null,"24653_0":null,"24654_0":null,"24655_0":null,"24656_0":null,"24657_0":null,"24658_0":null},"active_ids":{"one_24644":["0"],"two_0":["24644","24645","24646","24647","24648","24649","24650","24651","24652","24653","24654","24655","24656","24657","24658"],"one_24645":["0"],"one_24646":["0"],"one_24647":["0"],"one_24648":["0"],"one_24649":["0"],"one_24650":["0"],"one_24651":["0"],"one_24652":["0"],"one_24653":["0"],"one_24654":["0"],"one_24655":["0"],"one_24656":["0"],"one_24657":["0"],"one_24658":["0"]},"variant_informations":[],"variant_stocks":{"24644_0":"1000","24645_0":"1000","24646_0":"1000","24647_0":"1000","24648_0":"1000","24649_0":"1000","24650_0":"1000","24651_0":"1000","24652_0":"1000","24653_0":"1000","24654_0":"1000","24655_0":"1000","24656_0":"1000","24657_0":"1000","24658_0":"1000"}}

Seçiniz

Adet:

Teklif Al

Planlanan Teslimat

1 - 5 İş Günü

Tavsiye Et Yorum Ekle Fiyat Alarmı Alışveriş Listeme Ekle

Paylaş:

Ürün Özellikleri
Ödeme Seçenekleri
Yorumlar (0)
Tavsiye Et
Resimler
Öneri Kutusu

HSS - E DIN 376/B Metrik Normal Vidalı Eğik Ağız Bilemeli Makina Kılavuzu

Ürün Kodu	d1 (mm)	P adım	L1 (mm)	L2 (mm)	d2 (mm)	k(h12) (mm)
B00105770300	M3	0,5	56	10	2,2	-
B00105770400	M4	0,7	63	12	2,8	2,1
B00105770500	M5	0,8	70	14	3,5	2,7
B00105770600	M6	1	80	16	4,5	3,4
B00105770800	M8	1,25	90	18	6	4,9
B00105771000	M10	1,5	100	20	7	5,5
B00105771200	M12	1,75	110	24	9	7
B00105771400	M14	2	110	26	11	9
B00105771600	M16	2	110	28	12	9
B00105771800	M18	2,5	125	30	14	11
B00105772000	M20	2,5	140	32	16	12
B00105772200	M22	2,5	140	32	18	14,5
B00105772400	M24	3	160	34	18	14,5
B00105772700	M27	3	160	38	20	16
B00105773000	M30	3,5	180	45	22	18
