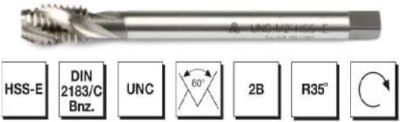

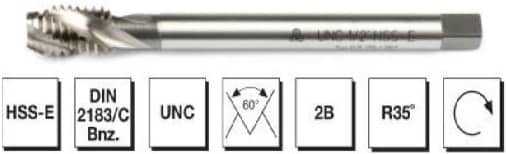

HSS - E DIN 2183/C USA Normal Vidalı Helis Kanallı Makina Kılavuzu - UNC

Ürün Kodu	d1 UNC	P adım G/Inch	L1 (mm)	L2 (mm)	d2 (mm)	k(h12) (mm)
B00105990003	7/16"	14	100	16	8	6,2
B00105990006	1/2"	13	110	20	9	7
B00105990008	3/8"	16	100	16	7	5,5
B00105990009	5/16"	18	90	14	6	4,9
B00105990021	9/16"	12	110	22	11	9
B00105990022	5/8"	11	110	22	12	9
B00105990031	3/4"	10	125	28	14	11
B00105990037	1/4"	20	80	12	4,5	3,4
B00105990065	7/8"	9	140	28	18	14,5
B00105990066	1"	8	160	32	20	16
