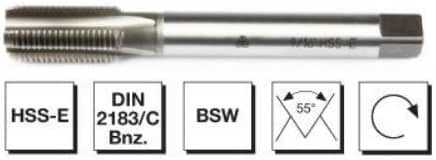

HSS - E DIN 2183-C Whitworth Vidalı Düz Kanallı Makina Kılavuzu

Fiyat

0,00 TL + KDV

KDV Dahil

0,00 TL

{"vat":18,"m_o_p":0,"variant_ids":{"24828_0":"27964","24829_0":"27965","24830_0":"27966","24831_0":"27967","24832_0":"27968","24833_0":"27969","24834_0":"27970","24835_0":"27971","24836_0":"27972","24837_0":"27973","24838_0":"27974","24839_0":"27975","24840_0":"27976","24841_0":"27977"},"variant_prices":{"24828_0":"0","24829_0":"0","24830_0":"0","24831_0":"0","24832_0":"0","24833_0":"0","24834_0":"0","24835_0":"0","24836_0":"0","24837_0":"0","24838_0":"0","24839_0":"0","24840_0":"0","24841_0":"0"},"variant_price_raws":{"24828_0":0,"24829_0":0,"24830_0":0,"24831_0":0,"24832_0":0,"24833_0":0,"24834_0":0,"24835_0":0,"24836_0":0,"24837_0":0,"24838_0":0,"24839_0":0,"24840_0":0,"24841_0":0},"buying_prices":{"24828_0":"0","24829_0":"0","24830_0":"0","24831_0":"0","24832_0":"0","24833_0":"0","24834_0":"0","24835_0":"0","24836_0":"0","24837_0":"0","24838_0":"0","24839_0":"0","24840_0":"0","24841_0":"0"},"not_discounted_prices":{"24828_0":0,"24829_0":0,"24830_0":0,"24831_0":0,"24832_0":0,"24833_0":0,"24834_0":0,"24835_0":0,"24836_0":0,"24837_0":0,"24838_0":0,"24839_0":0,"24840_0":0,"24841_0":0},"variant_supplier_codes":{"24828_0":null,"24829_0":null,"24830_0":null,"24831_0":null,"24832_0":null,"24833_0":null,"24834_0":null,"24835_0":null,"24836_0":null,"24837_0":null,"24838_0":null,"24839_0":null,"24840_0":null,"24841_0":null},"active_ids":{"one_24828":["0"],"two_0":["24828","24829","24830","24831","24832","24833","24834","24835","24836","24837","24838","24839","24840","24841"],"one_24829":["0"],"one_24830":["0"],"one_24831":["0"],"one_24832":["0"],"one_24833":["0"],"one_24834":["0"],"one_24835":["0"],"one_24836":["0"],"one_24837":["0"],"one_24838":["0"],"one_24839":["0"],"one_24840":["0"],"one_24841":["0"]},"variant_informations":[],"variant_stocks":{"24828_0":"1000","24829_0":"1000","24830_0":"1000","24831_0":"1000","24832_0":"1000","24833_0":"1000","24834_0":"1000","24835_0":"1000","24836_0":"1000","24837_0":"1000","24838_0":"1000","24839_0":"1000","24840_0":"1000","24841_0":"1000"}}

Seçiniz

Adet:

Teklif Al

Planlanan Teslimat

1 - 5 İş Günü

Tavsiye Et Yorum Ekle Fiyat Alarmı Alışveriş Listeme Ekle

Paylaş:

Ürün Özellikleri
Ödeme Seçenekleri
Yorumlar (0)
Tavsiye Et
Resimler
Öneri Kutusu

HSS - E DIN 2183/C Whitworth Vidalı Düz Kanallı Makina Kılavuzu

Ürün Kodu	d1 BSW	P adım G/Inch	L1 (mm)	L2 (mm)	d2 (mm)	k(h12) (mm)
B00105920317	W 1/8"	40	56	11	2,2
B00105920397	W 5/32"	32	63	13	2,8	2,1
B00105920476	W 3/16"	24	70	16	3,5	2,7
B00105920556	W 7/32"	24	70	16	3,5	2,7
B00105920635	W 1/4"	20	80	19	4,5	3,4
B00105920794	W 5/16"	18	90	22	6	4,9
B00105920952	W 3/8"	16	100	24	7	5,5
B00105921111	W 7/16"	14	100	24	8	6,2
B00105921270	W 1/2"	12	110	29	9	7
B00105921429	W 9/16"	12	110	30	11	9
B00105921587	W 5/8"	11	110	32	12	9
B00105921905	W 3/4"	10	125	34	14	11
B00105922222	W 7/8"	9	140	34	18	14,5
B00105922540	W 1"	8	160	38	20	16
